1654 nm Tunable VCSEL Pigtail TO with Isolator
BW10-1654-T-PSxx
Bandwidth10’s 1654 nm Tunable VCSEL Pigtail TO with Isolator is part of a family of lasers based on the innovative High Contrast Grating (HCG) single mode 1654 nm VCSEL.
Using the HCG as a tunable mirror leads to a wafer-scale, low cost fabrication process with simple voltage-controlled wavelength tuning for various applications.

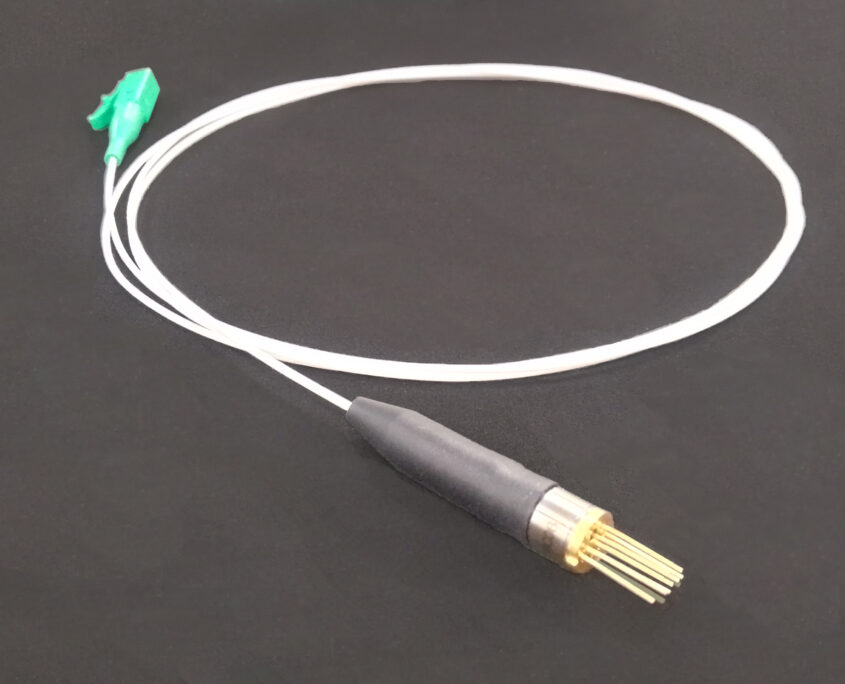

The HCG VCSEL is co-packaged with a thermo-electric cooler for temperature and wavelength stabilization in a 7-pin TO package with permanently attached fiber. The pigtail TO with isolator is available with an FC/APC connector. It offers fast wavelength tuning of more than 200 kHz and a tuning range of 4 nm.
Other Products
1654 nm Tunable VCSEL Pigtail TO with Isolator
1060 nm Tunable VCSEL Pigtail TO with Isolator
1654 nm Tunable VCSEL in TO Package with TEC
1550 nm Tunable VCSEL in TO Package with TEC
1550 nm Tunable VCSEL Pigtail TO with Isolator
1550 nm 10G Tunable VCSEL TOSA

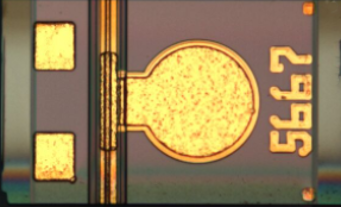

Distributed Feedback (DFB) Laser Diode Chips
